配置 Swagger UI¶
你可以配置一些额外的 Swagger UI 参数。
要配置这些参数，请在创建 FastAPI() 应用对象时，或调用 get_swagger_ui_html() 函数时传入 swagger_ui_parameters 参数。
swagger_ui_parameters 接收一个字典，其中的配置项会直接传递给 Swagger UI。
FastAPI 会将这些配置转换为 JSON，以便使其与 JavaScript 兼容，因为这正是 Swagger UI 所需的格式。
禁用语法高亮¶
例如，你可以在 Swagger UI 中禁用语法高亮。
在不更改设置的情况下，语法高亮默认是启用的。
但你可以通过将 syntaxHighlight 设置为 False 来禁用它。
from fastapi import FastAPI
app = FastAPI(swagger_ui_parameters={"syntaxHighlight": False})
@app.get("/users/{username}")
async def read_user(username: str):
return {"message": f"Hello {username}"}

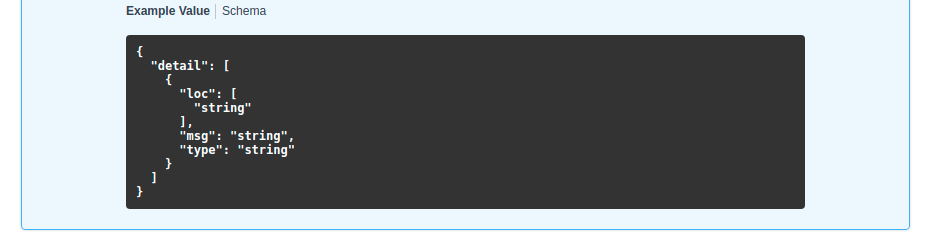

...这样 Swagger UI 就不会再显示语法高亮了。
更改主题¶
同理，你可以通过键 "syntaxHighlight.theme"（注意中间有一个点）来设置语法高亮主题。
from fastapi import FastAPI
app = FastAPI(swagger_ui_parameters={"syntaxHighlight": {"theme": "obsidian"}})
@app.get("/users/{username}")
async def read_user(username: str):
return {"message": f"Hello {username}"}

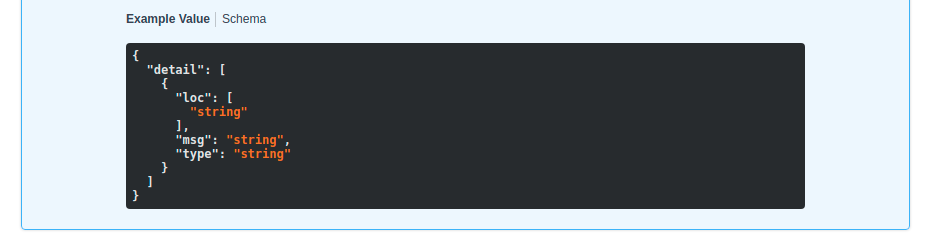

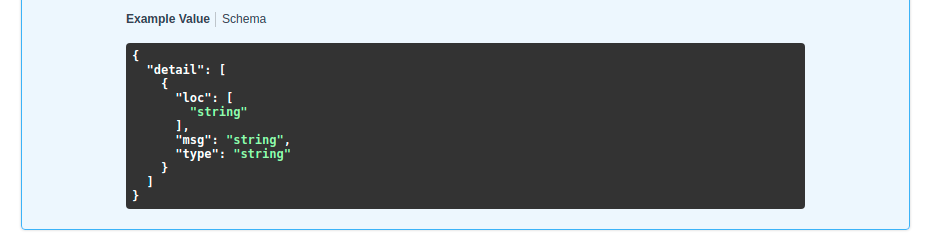

该配置将更改语法高亮的配色方案。
更改默认 Swagger UI 参数¶
FastAPI 包含了一些适用于大多数用例的默认配置参数。
它包含以下默认配置：
# Code above omitted 👆
def _html_safe_json(value: Any) -> str:
"""Serialize a value to JSON with HTML special characters escaped.
This prevents injection when the JSON is embedded inside a <script> tag.
"""
return (
json.dumps(value)
.replace("<", "\\u003c")
.replace(">", "\\u003e")
.replace("&", "\\u0026")
)
swagger_ui_default_parameters: Annotated[
dict[str, Any],
Doc(
# Code below omitted 👇
👀 完整文件预览
import json
from typing import Annotated, Any
from annotated_doc import Doc
from fastapi.encoders import jsonable_encoder
from starlette.responses import HTMLResponse
def _html_safe_json(value: Any) -> str:
"""Serialize a value to JSON with HTML special characters escaped.
This prevents injection when the JSON is embedded inside a <script> tag.
"""
return (
json.dumps(value)
.replace("<", "\\u003c")
.replace(">", "\\u003e")
.replace("&", "\\u0026")
)
swagger_ui_default_parameters: Annotated[
dict[str, Any],
Doc(
"""
Default configurations for Swagger UI.
You can use it as a template to add any other configurations needed.
"""
),
] = {
"dom_id": "#swagger-ui",
"layout": "BaseLayout",
"deepLinking": True,
"showExtensions": True,
"showCommonExtensions": True,
}
def get_swagger_ui_html(
*,
openapi_url: Annotated[
str,
Doc(
"""
The OpenAPI URL that Swagger UI should load and use.
This is normally done automatically by FastAPI using the default URL
`/openapi.json`.
Read more about it in the
[FastAPI docs for Conditional OpenAPI](https://fastapi.org.cn/how-to/conditional-openapi/#conditional-openapi-from-settings-and-env-vars)
"""
),
],
title: Annotated[
str,
Doc(
"""
The HTML `<title>` content, normally shown in the browser tab.
Read more about it in the
[FastAPI docs for Custom Docs UI Static Assets](https://fastapi.org.cn/how-to/custom-docs-ui-assets/)
"""
),
],
swagger_js_url: Annotated[
str,
Doc(
"""
The URL to use to load the Swagger UI JavaScript.
It is normally set to a CDN URL.
Read more about it in the
[FastAPI docs for Custom Docs UI Static Assets](https://fastapi.org.cn/how-to/custom-docs-ui-assets/)
"""
),
] = "https://cdn.jsdelivr.net.cn/npm/swagger-ui-dist@5/swagger-ui-bundle.js",
swagger_css_url: Annotated[
str,
Doc(
"""
The URL to use to load the Swagger UI CSS.
It is normally set to a CDN URL.
Read more about it in the
[FastAPI docs for Custom Docs UI Static Assets](https://fastapi.org.cn/how-to/custom-docs-ui-assets/)
"""
),
] = "https://cdn.jsdelivr.net.cn/npm/swagger-ui-dist@5/swagger-ui.css",
swagger_favicon_url: Annotated[
str,
Doc(
"""
The URL of the favicon to use. It is normally shown in the browser tab.
"""
),
] = "https://fastapi.org.cn/img/favicon.png",
oauth2_redirect_url: Annotated[
str | None,
Doc(
"""
The OAuth2 redirect URL, it is normally automatically handled by FastAPI.
Read more about it in the
[FastAPI docs for Custom Docs UI Static Assets](https://fastapi.org.cn/how-to/custom-docs-ui-assets/)
"""
),
] = None,
init_oauth: Annotated[
dict[str, Any] | None,
Doc(
"""
A dictionary with Swagger UI OAuth2 initialization configurations.
Read more about the available configuration options in the
[Swagger UI docs](https://swagger.org.cn/docs/open-source-tools/swagger-ui/usage/oauth2/).
"""
),
] = None,
swagger_ui_parameters: Annotated[
dict[str, Any] | None,
Doc(
"""
Configuration parameters for Swagger UI.
It defaults to [swagger_ui_default_parameters][fastapi.openapi.docs.swagger_ui_default_parameters].
Read more about it in the
[FastAPI docs about how to Configure Swagger UI](https://fastapi.org.cn/how-to/configure-swagger-ui/).
"""
),
] = None,
) -> HTMLResponse:
"""
Generate and return the HTML that loads Swagger UI for the interactive
API docs (normally served at `/docs`).
You would only call this function yourself if you needed to override some parts,
for example the URLs to use to load Swagger UI's JavaScript and CSS.
Read more about it in the
[FastAPI docs for Configure Swagger UI](https://fastapi.org.cn/how-to/configure-swagger-ui/)
and the [FastAPI docs for Custom Docs UI Static Assets (Self-Hosting)](https://fastapi.org.cn/how-to/custom-docs-ui-assets/).
"""
current_swagger_ui_parameters = swagger_ui_default_parameters.copy()
if swagger_ui_parameters:
current_swagger_ui_parameters.update(swagger_ui_parameters)
html = f"""
<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<link type="text/css" rel="stylesheet" href="{swagger_css_url}">
<link rel="shortcut icon" href="{swagger_favicon_url}">
<title>{title}</title>
</head>
<body>
<div id="swagger-ui">
</div>
<script src="{swagger_js_url}"></script>
<!-- `SwaggerUIBundle` is now available on the page -->
<script>
const ui = SwaggerUIBundle({{
url: '{openapi_url}',
"""
for key, value in current_swagger_ui_parameters.items():
html += f"{_html_safe_json(key)}: {_html_safe_json(jsonable_encoder(value))},\n"
if oauth2_redirect_url:
html += f"oauth2RedirectUrl: window.location.origin + '{oauth2_redirect_url}',"
html += """
presets: [
SwaggerUIBundle.presets.apis,
SwaggerUIBundle.SwaggerUIStandalonePreset
],
})"""
if init_oauth:
html += f"""
ui.initOAuth({_html_safe_json(jsonable_encoder(init_oauth))})
"""
html += """
</script>
</body>
</html>
"""
return HTMLResponse(html)
def get_redoc_html(
*,
openapi_url: Annotated[
str,
Doc(
"""
The OpenAPI URL that ReDoc should load and use.
This is normally done automatically by FastAPI using the default URL
`/openapi.json`.
Read more about it in the
[FastAPI docs for Conditional OpenAPI](https://fastapi.org.cn/how-to/conditional-openapi/#conditional-openapi-from-settings-and-env-vars)
"""
),
],
title: Annotated[
str,
Doc(
"""
The HTML `<title>` content, normally shown in the browser tab.
Read more about it in the
[FastAPI docs for Custom Docs UI Static Assets](https://fastapi.org.cn/how-to/custom-docs-ui-assets/)
"""
),
],
redoc_js_url: Annotated[
str,
Doc(
"""
The URL to use to load the ReDoc JavaScript.
It is normally set to a CDN URL.
Read more about it in the
[FastAPI docs for Custom Docs UI Static Assets](https://fastapi.org.cn/how-to/custom-docs-ui-assets/)
"""
),
] = "https://cdn.jsdelivr.net.cn/npm/redoc@2/bundles/redoc.standalone.js",
redoc_favicon_url: Annotated[
str,
Doc(
"""
The URL of the favicon to use. It is normally shown in the browser tab.
"""
),
] = "https://fastapi.org.cn/img/favicon.png",
with_google_fonts: Annotated[
bool,
Doc(
"""
Load and use Google Fonts.
"""
),
] = True,
) -> HTMLResponse:
"""
Generate and return the HTML response that loads ReDoc for the alternative
API docs (normally served at `/redoc`).
You would only call this function yourself if you needed to override some parts,
for example the URLs to use to load ReDoc's JavaScript and CSS.
Read more about it in the
[FastAPI docs for Custom Docs UI Static Assets (Self-Hosting)](https://fastapi.org.cn/how-to/custom-docs-ui-assets/).
"""
html = f"""
<!DOCTYPE html>
<html>
<head>
<title>{title}</title>
<!-- needed for adaptive design -->
<meta charset="utf-8"/>
<meta name="viewport" content="width=device-width, initial-scale=1">
"""
if with_google_fonts:
html += """
<link href="https://fonts.googleapis.ac.cn/css?family=Montserrat:300,400,700|Roboto:300,400,700" rel="stylesheet">
"""
html += f"""
<link rel="shortcut icon" href="{redoc_favicon_url}">
<!--
ReDoc doesn't change outer page styles
-->
<style>
body {{
margin: 0;
padding: 0;
}}
</style>
</head>
<body>
<noscript>
ReDoc requires Javascript to function. Please enable it to browse the documentation.
</noscript>
<redoc spec-url="{openapi_url}"></redoc>
<script src="{redoc_js_url}"> </script>
</body>
</html>
"""
return HTMLResponse(html)
def get_swagger_ui_oauth2_redirect_html() -> HTMLResponse:
"""
Generate the HTML response with the OAuth2 redirection for Swagger UI.
You normally don't need to use or change this.
"""
# copied from https://github.com/swagger-api/swagger-ui/blob/v4.14.0/dist/oauth2-redirect.html
html = """
<!doctype html>
<html lang="en-US">
<head>
<title>Swagger UI: OAuth2 Redirect</title>
</head>
<body>
<script>
'use strict';
function run () {
var oauth2 = window.opener.swaggerUIRedirectOauth2;
var sentState = oauth2.state;
var redirectUrl = oauth2.redirectUrl;
var isValid, qp, arr;
if (/code|token|error/.test(window.location.hash)) {
qp = window.location.hash.substring(1).replace('?', '&');
} else {
qp = location.search.substring(1);
}
arr = qp.split("&");
arr.forEach(function (v,i,_arr) { _arr[i] = '"' + v.replace('=', '":"') + '"';});
qp = qp ? JSON.parse('{' + arr.join() + '}',
function (key, value) {
return key === "" ? value : decodeURIComponent(value);
}
) : {};
isValid = qp.state === sentState;
if ((
oauth2.auth.schema.get("flow") === "accessCode" ||
oauth2.auth.schema.get("flow") === "authorizationCode" ||
oauth2.auth.schema.get("flow") === "authorization_code"
) && !oauth2.auth.code) {
if (!isValid) {
oauth2.errCb({
authId: oauth2.auth.name,
source: "auth",
level: "warning",
message: "Authorization may be unsafe, passed state was changed in server. The passed state wasn't returned from auth server."
});
}
if (qp.code) {
delete oauth2.state;
oauth2.auth.code = qp.code;
oauth2.callback({auth: oauth2.auth, redirectUrl: redirectUrl});
} else {
let oauthErrorMsg;
if (qp.error) {
oauthErrorMsg = "["+qp.error+"]: " +
(qp.error_description ? qp.error_description+ ". " : "no accessCode received from the server. ") +
(qp.error_uri ? "More info: "+qp.error_uri : "");
}
oauth2.errCb({
authId: oauth2.auth.name,
source: "auth",
level: "error",
message: oauthErrorMsg || "[Authorization failed]: no accessCode received from the server."
});
}
} else {
oauth2.callback({auth: oauth2.auth, token: qp, isValid: isValid, redirectUrl: redirectUrl});
}
window.close();
}
if (document.readyState !== 'loading') {
run();
} else {
document.addEventListener('DOMContentLoaded', function () {
run();
});
}
</script>
</body>
</html>
"""
return HTMLResponse(content=html)
你可以通过在 swagger_ui_parameters 参数中设置不同的值来覆盖其中的任何配置。
例如，要禁用 deepLinking，你可以向 swagger_ui_parameters 传入这些设置：
from fastapi import FastAPI
app = FastAPI(swagger_ui_parameters={"deepLinking": False})
@app.get("/users/{username}")
async def read_user(username: str):
return {"message": f"Hello {username}"}
其他 Swagger UI 参数¶
要查看所有其他可用的配置，请参阅官方的 Swagger UI 参数文档。
仅限 JavaScript 的设置¶
Swagger UI 还允许使用其他仅限 JavaScript 的配置对象（例如 JavaScript 函数）。
FastAPI 也包含这些仅限 JavaScript 的 presets 设置。
presets: [
SwaggerUIBundle.presets.apis,
SwaggerUIBundle.SwaggerUIStandalonePreset
]
这些是 JavaScript 对象，而不是字符串，因此你无法直接通过 Python 代码传入它们。
如果你需要使用此类仅限 JavaScript 的配置，可以使用上述方法之一：重写整个 Swagger UI 路径操作 并手动编写你需要的任何 JavaScript 代码。
