WebSockets¶

你可以将 WebSockets 与 FastAPI 一起使用。

安装 `WebSockets`¶

请确保你创建了一个虚拟环境，激活它，并安装 websockets。

$ pip install websockets

---> 100%

WebSockets 客户端¶

在生产环境¶

在你的生产系统中，你可能有一个用 React、Vue.js 或 Angular 等现代框架创建的前端。

为了通过 WebSockets 与后端通信，你可能会使用前端的实用工具。

或者你可能有一个原生移动应用程序，它通过原生代码直接与你的 WebSocket 后端通信。

或者你可能还有其他方式与 WebSocket 端点通信。

但对于本例，我们将使用一个非常简单的 HTML 文档和一些 JavaScript，所有内容都在一个长字符串中。

当然，这并非最佳实践，你不会在生产环境中使用它。

在生产环境中，你会选择上述方法之一。

但这是最简单的方法，可以让你专注于 WebSockets 的服务器端并拥有一个可工作的示例。

Python 3.8+

from fastapi import FastAPI, WebSocket
from fastapi.responses import HTMLResponse

app = FastAPI()

html = """
<!DOCTYPE html>
<html>
    <head>
        <title>Chat</title>
    </head>
    <body>
        <h1>WebSocket Chat</h1>
        <form action="" onsubmit="sendMessage(event)">
            <input type="text" id="messageText" autocomplete="off"/>
            <button>Send</button>
        </form>
        <ul id='messages'>
        </ul>
        <script>
            var ws = new WebSocket("ws://:8000/ws");
            ws.onmessage = function(event) {
                var messages = document.getElementById('messages')
                var message = document.createElement('li')
                var content = document.createTextNode(event.data)
                message.appendChild(content)
                messages.appendChild(message)
            };
            function sendMessage(event) {
                var input = document.getElementById("messageText")
                ws.send(input.value)
                input.value = ''
                event.preventDefault()
            }
        </script>
    </body>
</html>
"""


@app.get("/")
async def get():
    return HTMLResponse(html)


@app.websocket("/ws")
async def websocket_endpoint(websocket: WebSocket):
    await websocket.accept()
    while True:
        data = await websocket.receive_text()
        await websocket.send_text(f"Message text was: {data}")

创建 `websocket`¶

在你的 FastAPI 应用程序中，创建一个 websocket。

Python 3.8+

from fastapi import FastAPI, WebSocket
from fastapi.responses import HTMLResponse

app = FastAPI()

html = """
<!DOCTYPE html>
<html>
    <head>
        <title>Chat</title>
    </head>
    <body>
        <h1>WebSocket Chat</h1>
        <form action="" onsubmit="sendMessage(event)">
            <input type="text" id="messageText" autocomplete="off"/>
            <button>Send</button>
        </form>
        <ul id='messages'>
        </ul>
        <script>
            var ws = new WebSocket("ws://:8000/ws");
            ws.onmessage = function(event) {
                var messages = document.getElementById('messages')
                var message = document.createElement('li')
                var content = document.createTextNode(event.data)
                message.appendChild(content)
                messages.appendChild(message)
            };
            function sendMessage(event) {
                var input = document.getElementById("messageText")
                ws.send(input.value)
                input.value = ''
                event.preventDefault()
            }
        </script>
    </body>
</html>
"""


@app.get("/")
async def get():
    return HTMLResponse(html)


@app.websocket("/ws")
async def websocket_endpoint(websocket: WebSocket):
    await websocket.accept()
    while True:
        data = await websocket.receive_text()
        await websocket.send_text(f"Message text was: {data}")

技术细节

你也可以使用 from starlette.websockets import WebSocket。

FastAPI 直接提供相同的 WebSocket 只是为了方便开发者。但它直接来源于 Starlette。

等待和发送消息¶

在你的 WebSocket 路由中，你可以 await 消息并发送消息。

Python 3.8+

from fastapi import FastAPI, WebSocket
from fastapi.responses import HTMLResponse

app = FastAPI()

html = """
<!DOCTYPE html>
<html>
    <head>
        <title>Chat</title>
    </head>
    <body>
        <h1>WebSocket Chat</h1>
        <form action="" onsubmit="sendMessage(event)">
            <input type="text" id="messageText" autocomplete="off"/>
            <button>Send</button>
        </form>
        <ul id='messages'>
        </ul>
        <script>
            var ws = new WebSocket("ws://:8000/ws");
            ws.onmessage = function(event) {
                var messages = document.getElementById('messages')
                var message = document.createElement('li')
                var content = document.createTextNode(event.data)
                message.appendChild(content)
                messages.appendChild(message)
            };
            function sendMessage(event) {
                var input = document.getElementById("messageText")
                ws.send(input.value)
                input.value = ''
                event.preventDefault()
            }
        </script>
    </body>
</html>
"""


@app.get("/")
async def get():
    return HTMLResponse(html)


@app.websocket("/ws")
async def websocket_endpoint(websocket: WebSocket):
    await websocket.accept()
    while True:
        data = await websocket.receive_text()
        await websocket.send_text(f"Message text was: {data}")

你可以接收和发送二进制、文本和 JSON 数据。

试用¶

如果你的文件名为 main.py，则运行你的应用程序：

$ fastapi dev main.py

<span style="color: green;">INFO</span>:     Uvicorn running on http://127.0.0.1:8000 (Press CTRL+C to quit)

在浏览器中打开 http://127.0.0.1:8000。

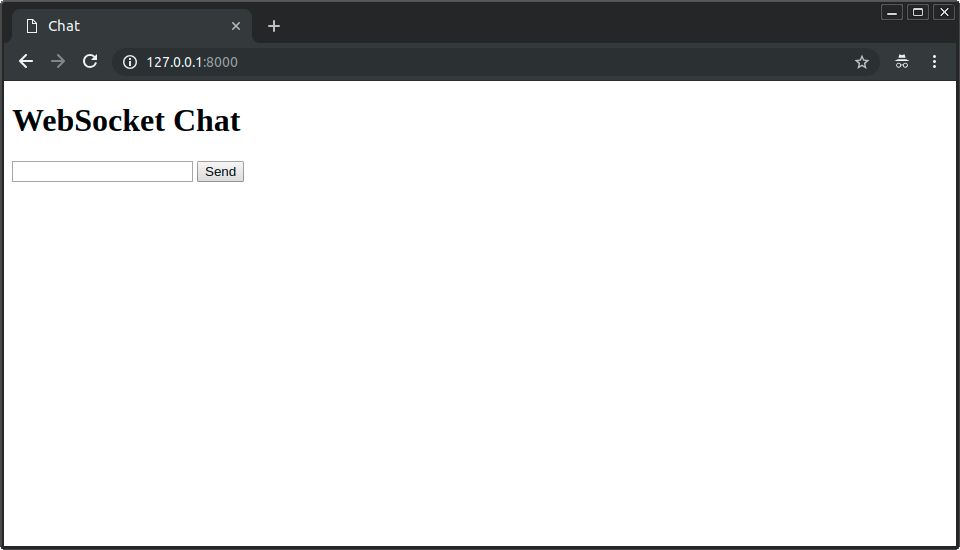

你将看到一个简单的页面，例如：

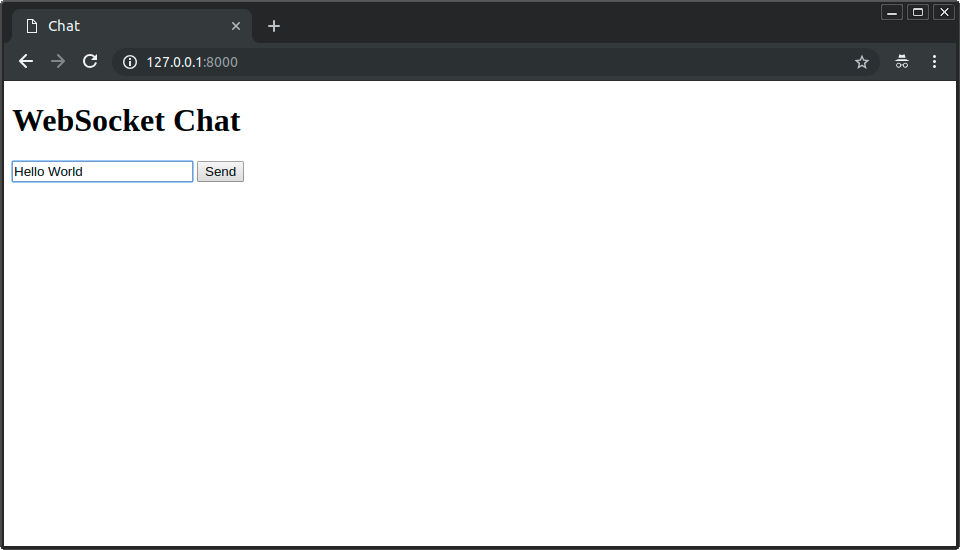

你可以在输入框中输入消息并发送它们。

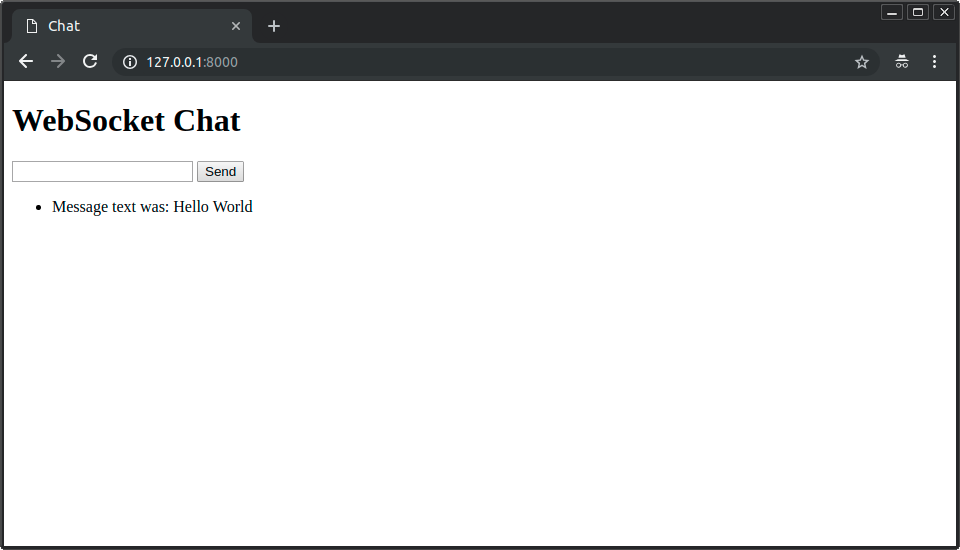

你的带有 WebSockets 的 FastAPI 应用程序将回复。

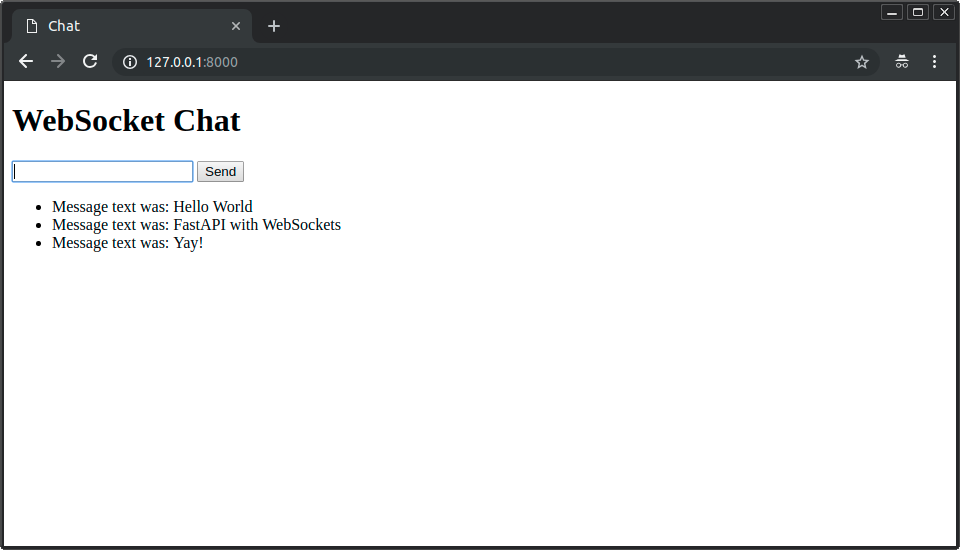

你可以发送（和接收）多条消息。

所有这些消息都将使用相同的 WebSocket 连接。

使用 `Depends` 和其他¶

在 WebSocket 端点中，你可以从 fastapi 导入并使用：

Depends
安全
Cookie
Header
Path
Query

它们与其他 FastAPI 端点/路径操作的工作方式相同。

Python 3.10+

from typing import Annotated

from fastapi import (
    Cookie,
    Depends,
    FastAPI,
    Query,
    WebSocket,
    WebSocketException,
    status,
)
from fastapi.responses import HTMLResponse

app = FastAPI()

html = """
<!DOCTYPE html>
<html>
    <head>
        <title>Chat</title>
    </head>
    <body>
        <h1>WebSocket Chat</h1>
        <form action="" onsubmit="sendMessage(event)">
            <label>Item ID: <input type="text" id="itemId" autocomplete="off" value="foo"/></label>
            <label>Token: <input type="text" id="token" autocomplete="off" value="some-key-token"/></label>
            <button onclick="connect(event)">Connect</button>
            <hr>
            <label>Message: <input type="text" id="messageText" autocomplete="off"/></label>
            <button>Send</button>
        </form>
        <ul id='messages'>
        </ul>
        <script>
        var ws = null;
            function connect(event) {
                var itemId = document.getElementById("itemId")
                var token = document.getElementById("token")
                ws = new WebSocket("ws://:8000/items/" + itemId.value + "/ws?token=" + token.value);
                ws.onmessage = function(event) {
                    var messages = document.getElementById('messages')
                    var message = document.createElement('li')
                    var content = document.createTextNode(event.data)
                    message.appendChild(content)
                    messages.appendChild(message)
                };
                event.preventDefault()
            }
            function sendMessage(event) {
                var input = document.getElementById("messageText")
                ws.send(input.value)
                input.value = ''
                event.preventDefault()
            }
        </script>
    </body>
</html>
"""


@app.get("/")
async def get():
    return HTMLResponse(html)


async def get_cookie_or_token(
    websocket: WebSocket,
    session: Annotated[str | None, Cookie()] = None,
    token: Annotated[str | None, Query()] = None,
):
    if session is None and token is None:
        raise WebSocketException(code=status.WS_1008_POLICY_VIOLATION)
    return session or token


@app.websocket("/items/{item_id}/ws")
async def websocket_endpoint(
    *,
    websocket: WebSocket,
    item_id: str,
    q: int | None = None,
    cookie_or_token: Annotated[str, Depends(get_cookie_or_token)],
):
    await websocket.accept()
    while True:
        data = await websocket.receive_text()
        await websocket.send_text(
            f"Session cookie or query token value is: {cookie_or_token}"
        )
        if q is not None:
            await websocket.send_text(f"Query parameter q is: {q}")
        await websocket.send_text(f"Message text was: {data}, for item ID: {item_id}")

🤓 其他版本和变体

Python 3.9+Python 3.8+Python 3.10+ - 非 AnnotatedPython 3.8+ - 非 Annotated

from typing import Annotated, Union

from fastapi import (
    Cookie,
    Depends,
    FastAPI,
    Query,
    WebSocket,
    WebSocketException,
    status,
)
from fastapi.responses import HTMLResponse

app = FastAPI()

html = """
<!DOCTYPE html>
<html>
    <head>
        <title>Chat</title>
    </head>
    <body>
        <h1>WebSocket Chat</h1>
        <form action="" onsubmit="sendMessage(event)">
            <label>Item ID: <input type="text" id="itemId" autocomplete="off" value="foo"/></label>
            <label>Token: <input type="text" id="token" autocomplete="off" value="some-key-token"/></label>
            <button onclick="connect(event)">Connect</button>
            <hr>
            <label>Message: <input type="text" id="messageText" autocomplete="off"/></label>
            <button>Send</button>
        </form>
        <ul id='messages'>
        </ul>
        <script>
        var ws = null;
            function connect(event) {
                var itemId = document.getElementById("itemId")
                var token = document.getElementById("token")
                ws = new WebSocket("ws://:8000/items/" + itemId.value + "/ws?token=" + token.value);
                ws.onmessage = function(event) {
                    var messages = document.getElementById('messages')
                    var message = document.createElement('li')
                    var content = document.createTextNode(event.data)
                    message.appendChild(content)
                    messages.appendChild(message)
                };
                event.preventDefault()
            }
            function sendMessage(event) {
                var input = document.getElementById("messageText")
                ws.send(input.value)
                input.value = ''
                event.preventDefault()
            }
        </script>
    </body>
</html>
"""


@app.get("/")
async def get():
    return HTMLResponse(html)


async def get_cookie_or_token(
    websocket: WebSocket,
    session: Annotated[Union[str, None], Cookie()] = None,
    token: Annotated[Union[str, None], Query()] = None,
):
    if session is None and token is None:
        raise WebSocketException(code=status.WS_1008_POLICY_VIOLATION)
    return session or token


@app.websocket("/items/{item_id}/ws")
async def websocket_endpoint(
    *,
    websocket: WebSocket,
    item_id: str,
    q: Union[int, None] = None,
    cookie_or_token: Annotated[str, Depends(get_cookie_or_token)],
):
    await websocket.accept()
    while True:
        data = await websocket.receive_text()
        await websocket.send_text(
            f"Session cookie or query token value is: {cookie_or_token}"
        )
        if q is not None:
            await websocket.send_text(f"Query parameter q is: {q}")
        await websocket.send_text(f"Message text was: {data}, for item ID: {item_id}")

from typing import Union

from fastapi import (
    Cookie,
    Depends,
    FastAPI,
    Query,
    WebSocket,
    WebSocketException,
    status,
)
from fastapi.responses import HTMLResponse
from typing_extensions import Annotated

app = FastAPI()

html = """
<!DOCTYPE html>
<html>
    <head>
        <title>Chat</title>
    </head>
    <body>
        <h1>WebSocket Chat</h1>
        <form action="" onsubmit="sendMessage(event)">
            <label>Item ID: <input type="text" id="itemId" autocomplete="off" value="foo"/></label>
            <label>Token: <input type="text" id="token" autocomplete="off" value="some-key-token"/></label>
            <button onclick="connect(event)">Connect</button>
            <hr>
            <label>Message: <input type="text" id="messageText" autocomplete="off"/></label>
            <button>Send</button>
        </form>
        <ul id='messages'>
        </ul>
        <script>
        var ws = null;
            function connect(event) {
                var itemId = document.getElementById("itemId")
                var token = document.getElementById("token")
                ws = new WebSocket("ws://:8000/items/" + itemId.value + "/ws?token=" + token.value);
                ws.onmessage = function(event) {
                    var messages = document.getElementById('messages')
                    var message = document.createElement('li')
                    var content = document.createTextNode(event.data)
                    message.appendChild(content)
                    messages.appendChild(message)
                };
                event.preventDefault()
            }
            function sendMessage(event) {
                var input = document.getElementById("messageText")
                ws.send(input.value)
                input.value = ''
                event.preventDefault()
            }
        </script>
    </body>
</html>
"""


@app.get("/")
async def get():
    return HTMLResponse(html)


async def get_cookie_or_token(
    websocket: WebSocket,
    session: Annotated[Union[str, None], Cookie()] = None,
    token: Annotated[Union[str, None], Query()] = None,
):
    if session is None and token is None:
        raise WebSocketException(code=status.WS_1008_POLICY_VIOLATION)
    return session or token


@app.websocket("/items/{item_id}/ws")
async def websocket_endpoint(
    *,
    websocket: WebSocket,
    item_id: str,
    q: Union[int, None] = None,
    cookie_or_token: Annotated[str, Depends(get_cookie_or_token)],
):
    await websocket.accept()
    while True:
        data = await websocket.receive_text()
        await websocket.send_text(
            f"Session cookie or query token value is: {cookie_or_token}"
        )
        if q is not None:
            await websocket.send_text(f"Query parameter q is: {q}")
        await websocket.send_text(f"Message text was: {data}, for item ID: {item_id}")

提示

如果可能，请优先使用 Annotated 版本。

from fastapi import (
    Cookie,
    Depends,
    FastAPI,
    Query,
    WebSocket,
    WebSocketException,
    status,
)
from fastapi.responses import HTMLResponse

app = FastAPI()

html = """
<!DOCTYPE html>
<html>
    <head>
        <title>Chat</title>
    </head>
    <body>
        <h1>WebSocket Chat</h1>
        <form action="" onsubmit="sendMessage(event)">
            <label>Item ID: <input type="text" id="itemId" autocomplete="off" value="foo"/></label>
            <label>Token: <input type="text" id="token" autocomplete="off" value="some-key-token"/></label>
            <button onclick="connect(event)">Connect</button>
            <hr>
            <label>Message: <input type="text" id="messageText" autocomplete="off"/></label>
            <button>Send</button>
        </form>
        <ul id='messages'>
        </ul>
        <script>
        var ws = null;
            function connect(event) {
                var itemId = document.getElementById("itemId")
                var token = document.getElementById("token")
                ws = new WebSocket("ws://:8000/items/" + itemId.value + "/ws?token=" + token.value);
                ws.onmessage = function(event) {
                    var messages = document.getElementById('messages')
                    var message = document.createElement('li')
                    var content = document.createTextNode(event.data)
                    message.appendChild(content)
                    messages.appendChild(message)
                };
                event.preventDefault()
            }
            function sendMessage(event) {
                var input = document.getElementById("messageText")
                ws.send(input.value)
                input.value = ''
                event.preventDefault()
            }
        </script>
    </body>
</html>
"""


@app.get("/")
async def get():
    return HTMLResponse(html)


async def get_cookie_or_token(
    websocket: WebSocket,
    session: str | None = Cookie(default=None),
    token: str | None = Query(default=None),
):
    if session is None and token is None:
        raise WebSocketException(code=status.WS_1008_POLICY_VIOLATION)
    return session or token


@app.websocket("/items/{item_id}/ws")
async def websocket_endpoint(
    websocket: WebSocket,
    item_id: str,
    q: int | None = None,
    cookie_or_token: str = Depends(get_cookie_or_token),
):
    await websocket.accept()
    while True:
        data = await websocket.receive_text()
        await websocket.send_text(
            f"Session cookie or query token value is: {cookie_or_token}"
        )
        if q is not None:
            await websocket.send_text(f"Query parameter q is: {q}")
        await websocket.send_text(f"Message text was: {data}, for item ID: {item_id}")

提示

如果可能，请优先使用 Annotated 版本。

from typing import Union

from fastapi import (
    Cookie,
    Depends,
    FastAPI,
    Query,
    WebSocket,
    WebSocketException,
    status,
)
from fastapi.responses import HTMLResponse

app = FastAPI()

html = """
<!DOCTYPE html>
<html>
    <head>
        <title>Chat</title>
    </head>
    <body>
        <h1>WebSocket Chat</h1>
        <form action="" onsubmit="sendMessage(event)">
            <label>Item ID: <input type="text" id="itemId" autocomplete="off" value="foo"/></label>
            <label>Token: <input type="text" id="token" autocomplete="off" value="some-key-token"/></label>
            <button onclick="connect(event)">Connect</button>
            <hr>
            <label>Message: <input type="text" id="messageText" autocomplete="off"/></label>
            <button>Send</button>
        </form>
        <ul id='messages'>
        </ul>
        <script>
        var ws = null;
            function connect(event) {
                var itemId = document.getElementById("itemId")
                var token = document.getElementById("token")
                ws = new WebSocket("ws://:8000/items/" + itemId.value + "/ws?token=" + token.value);
                ws.onmessage = function(event) {
                    var messages = document.getElementById('messages')
                    var message = document.createElement('li')
                    var content = document.createTextNode(event.data)
                    message.appendChild(content)
                    messages.appendChild(message)
                };
                event.preventDefault()
            }
            function sendMessage(event) {
                var input = document.getElementById("messageText")
                ws.send(input.value)
                input.value = ''
                event.preventDefault()
            }
        </script>
    </body>
</html>
"""


@app.get("/")
async def get():
    return HTMLResponse(html)


async def get_cookie_or_token(
    websocket: WebSocket,
    session: Union[str, None] = Cookie(default=None),
    token: Union[str, None] = Query(default=None),
):
    if session is None and token is None:
        raise WebSocketException(code=status.WS_1008_POLICY_VIOLATION)
    return session or token


@app.websocket("/items/{item_id}/ws")
async def websocket_endpoint(
    websocket: WebSocket,
    item_id: str,
    q: Union[int, None] = None,
    cookie_or_token: str = Depends(get_cookie_or_token),
):
    await websocket.accept()
    while True:
        data = await websocket.receive_text()
        await websocket.send_text(
            f"Session cookie or query token value is: {cookie_or_token}"
        )
        if q is not None:
            await websocket.send_text(f"Query parameter q is: {q}")
        await websocket.send_text(f"Message text was: {data}, for item ID: {item_id}")

信息

由于这是一个 WebSocket，引发 HTTPException 并不完全合理，因此我们改为引发 WebSocketException。

你可以使用规范中定义的有效关闭代码。

使用依赖项试用 WebSockets¶

如果你的文件名为 main.py，则运行你的应用程序：

$ fastapi dev main.py

<span style="color: green;">INFO</span>:     Uvicorn running on http://127.0.0.1:8000 (Press CTRL+C to quit)

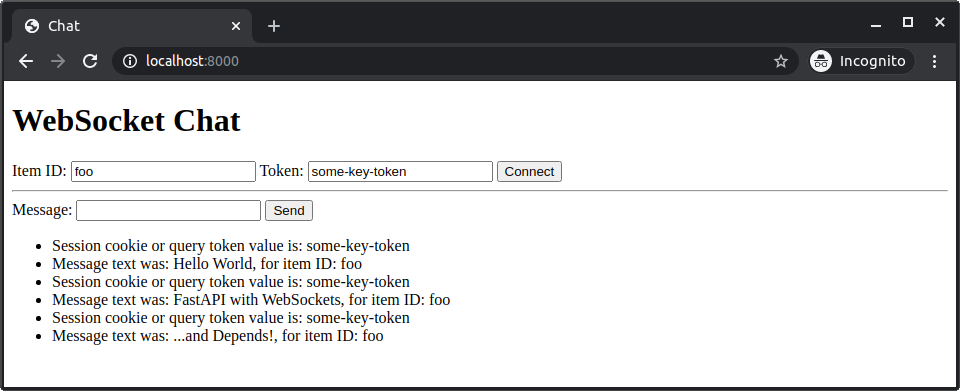

在浏览器中打开 http://127.0.0.1:8000。

在那里你可以设置：

路径中使用的“项目 ID”。
用作查询参数的“令牌”。

提示

请注意，查询 token 将由依赖项处理。

这样你就可以连接 WebSocket，然后发送和接收消息。

处理断开连接和多个客户端¶

当 WebSocket 连接关闭时，await websocket.receive_text() 将引发 WebSocketDisconnect 异常，你可以像本例一样捕获并处理它。

Python 3.9+

from fastapi import FastAPI, WebSocket, WebSocketDisconnect
from fastapi.responses import HTMLResponse

app = FastAPI()

html = """
<!DOCTYPE html>
<html>
    <head>
        <title>Chat</title>
    </head>
    <body>
        <h1>WebSocket Chat</h1>
        <h2>Your ID: <span id="ws-id"></span></h2>
        <form action="" onsubmit="sendMessage(event)">
            <input type="text" id="messageText" autocomplete="off"/>
            <button>Send</button>
        </form>
        <ul id='messages'>
        </ul>
        <script>
            var client_id = Date.now()
            document.querySelector("#ws-id").textContent = client_id;
            var ws = new WebSocket(`ws://:8000/ws/${client_id}`);
            ws.onmessage = function(event) {
                var messages = document.getElementById('messages')
                var message = document.createElement('li')
                var content = document.createTextNode(event.data)
                message.appendChild(content)
                messages.appendChild(message)
            };
            function sendMessage(event) {
                var input = document.getElementById("messageText")
                ws.send(input.value)
                input.value = ''
                event.preventDefault()
            }
        </script>
    </body>
</html>
"""


class ConnectionManager:
    def __init__(self):
        self.active_connections: list[WebSocket] = []

    async def connect(self, websocket: WebSocket):
        await websocket.accept()
        self.active_connections.append(websocket)

    def disconnect(self, websocket: WebSocket):
        self.active_connections.remove(websocket)

    async def send_personal_message(self, message: str, websocket: WebSocket):
        await websocket.send_text(message)

    async def broadcast(self, message: str):
        for connection in self.active_connections:
            await connection.send_text(message)


manager = ConnectionManager()


@app.get("/")
async def get():
    return HTMLResponse(html)


@app.websocket("/ws/{client_id}")
async def websocket_endpoint(websocket: WebSocket, client_id: int):
    await manager.connect(websocket)
    try:
        while True:
            data = await websocket.receive_text()
            await manager.send_personal_message(f"You wrote: {data}", websocket)
            await manager.broadcast(f"Client #{client_id} says: {data}")
    except WebSocketDisconnect:
        manager.disconnect(websocket)
        await manager.broadcast(f"Client #{client_id} left the chat")

🤓 其他版本和变体

Python 3.8+

from typing import List

from fastapi import FastAPI, WebSocket, WebSocketDisconnect
from fastapi.responses import HTMLResponse

app = FastAPI()

html = """
<!DOCTYPE html>
<html>
    <head>
        <title>Chat</title>
    </head>
    <body>
        <h1>WebSocket Chat</h1>
        <h2>Your ID: <span id="ws-id"></span></h2>
        <form action="" onsubmit="sendMessage(event)">
            <input type="text" id="messageText" autocomplete="off"/>
            <button>Send</button>
        </form>
        <ul id='messages'>
        </ul>
        <script>
            var client_id = Date.now()
            document.querySelector("#ws-id").textContent = client_id;
            var ws = new WebSocket(`ws://:8000/ws/${client_id}`);
            ws.onmessage = function(event) {
                var messages = document.getElementById('messages')
                var message = document.createElement('li')
                var content = document.createTextNode(event.data)
                message.appendChild(content)
                messages.appendChild(message)
            };
            function sendMessage(event) {
                var input = document.getElementById("messageText")
                ws.send(input.value)
                input.value = ''
                event.preventDefault()
            }
        </script>
    </body>
</html>
"""


class ConnectionManager:
    def __init__(self):
        self.active_connections: List[WebSocket] = []

    async def connect(self, websocket: WebSocket):
        await websocket.accept()
        self.active_connections.append(websocket)

    def disconnect(self, websocket: WebSocket):
        self.active_connections.remove(websocket)

    async def send_personal_message(self, message: str, websocket: WebSocket):
        await websocket.send_text(message)

    async def broadcast(self, message: str):
        for connection in self.active_connections:
            await connection.send_text(message)


manager = ConnectionManager()


@app.get("/")
async def get():
    return HTMLResponse(html)


@app.websocket("/ws/{client_id}")
async def websocket_endpoint(websocket: WebSocket, client_id: int):
    await manager.connect(websocket)
    try:
        while True:
            data = await websocket.receive_text()
            await manager.send_personal_message(f"You wrote: {data}", websocket)
            await manager.broadcast(f"Client #{client_id} says: {data}")
    except WebSocketDisconnect:
        manager.disconnect(websocket)
        await manager.broadcast(f"Client #{client_id} left the chat")

要试用它：

用多个浏览器标签页打开应用程序。
从它们发送消息。
然后关闭其中一个标签页。

这将引发 WebSocketDisconnect 异常，所有其他客户端将收到一条类似以下的消息：

Client #1596980209979 left the chat

提示

上面的应用程序是一个最小且简单的示例，用于演示如何处理消息并将其广播到多个 WebSocket 连接。

但请记住，由于所有内容都在内存中、在一个单一列表中处理，它只在进程运行时才有效，并且只能与单个进程一起工作。

如果你需要一个易于与 FastAPI 集成但更健壮，并由 Redis、PostgreSQL 或其他支持的方案，请查看 encode/broadcaster。

WebSockets¶

安装 WebSockets¶

WebSockets 客户端¶

在生产环境¶

创建 websocket¶

等待和发送消息¶

试用¶

使用 Depends 和其他¶

使用依赖项试用 WebSockets¶

处理断开连接和多个客户端¶

更多信息¶

安装 `WebSockets`¶

创建 `websocket`¶

使用 `Depends` 和其他¶
